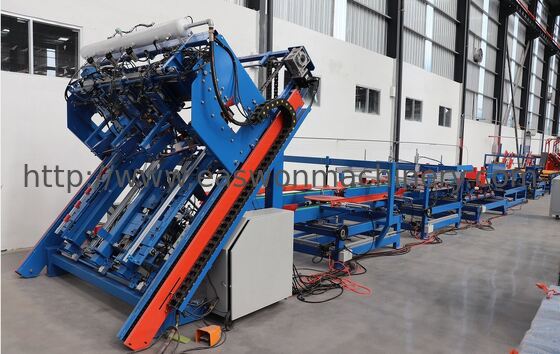

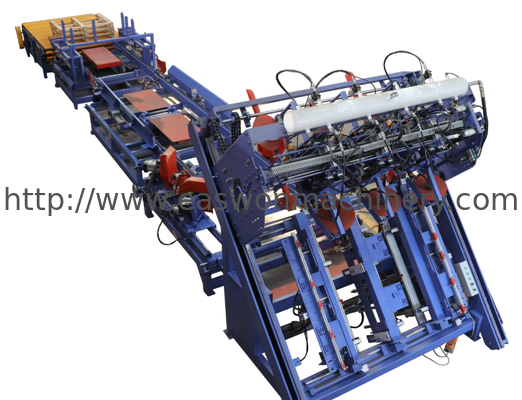

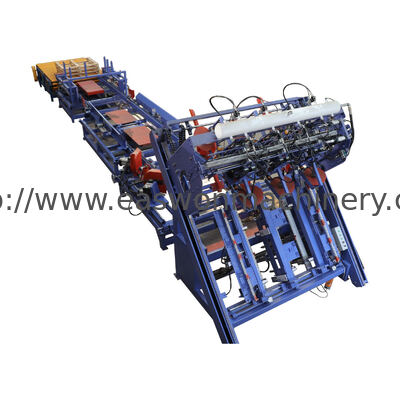

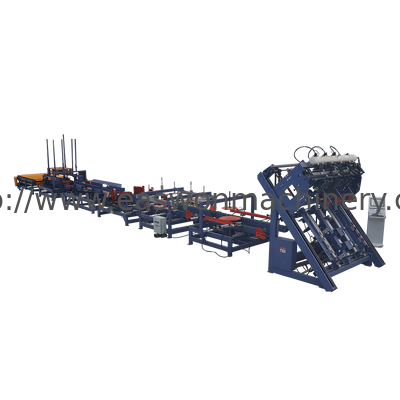

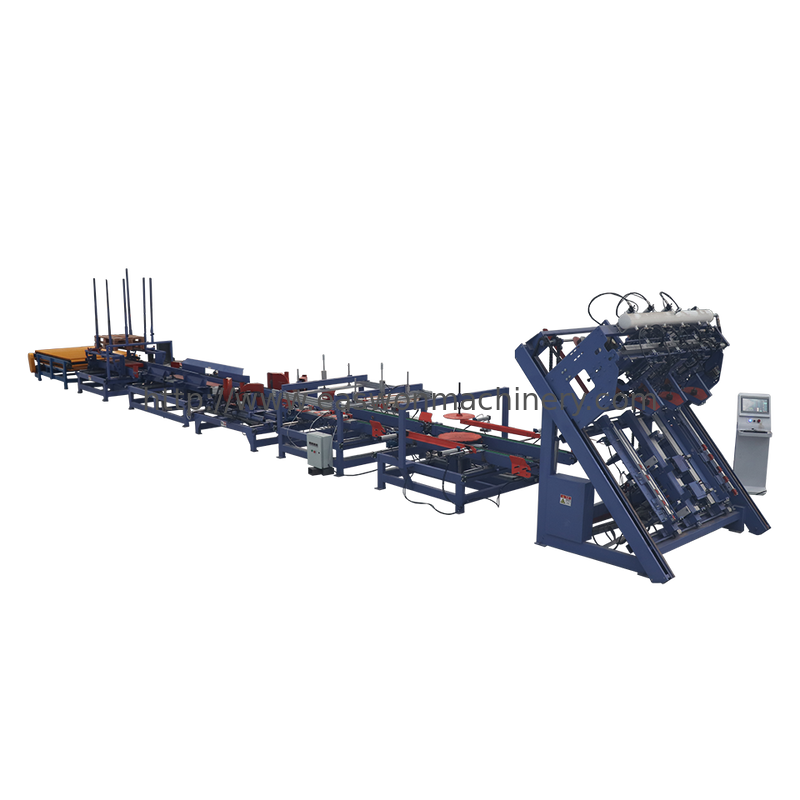

European Automatic Pallet Production Line
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Easwon |
| Certificering: | CE, ISO |
| Modelnummer: | Aepn-1300 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | negotiated |
| Verpakking Details: | houten kist |
| Levertijd: | 15-20 dagen |
| Betalingscondities: | L/C, T/T |
| Levering vermogen: | 10 sets per maand |
|
Gedetailleerde informatie |
|||
| Houten Palletlengte: | 7001300mm | Houten Palletbreedte: | 800-1300 mm |
|---|---|---|---|
| Productiviteit: | 50-80 stks/uur | Garantie: | 1 jaar |
| Voorwaarde: | Nieuw | ||
| Markeren: | European automatic pallet production line,horizontal band sawmill pallet machine,industrial pallet manufacturing equipment |
||
Productomschrijving
European Automatic wood pallet production line
The European Automatic Pallet Production Line (AEPN-1300) is a heavy-duty, high-efficiency manufacturing solution explicitly engineered for the automated production of standard European wooden pallets (Euro pallets). Integrating automatic feeding, cutting, high-precision nailing, assembling, and stacking, this comprehensive production line is designed to significantly minimize labor costs while maximizing output for large-scale pallet factories, wood processing plants, and logistics packaging enterprises.
Key Technical Specifications
- Operating System: Imported PLC Touch Screen control for precise and user-friendly operation.
- Working Mode: Fully automatic feeding, multi-axis linkage nailing, and automatic stacking.
- Nailing Speed: High-efficiency nail guns operating at up to 7 times/second.
- Production Efficiency: 1–2 finished pallets per minute.
- Air Pressure Required: 0.8 MPa.
- Applicable Nail Sizes: Supports a versatile range of nails (65mm, 70mm, 75mm, 80mm, 85mm, 90mm).

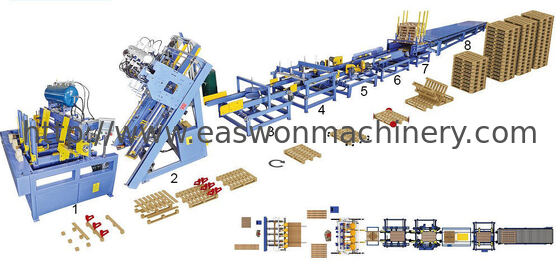

Step-by-Step Production Process
The production line seamlessly connects multiple specialized machines into a synchronized workflow:
| Wood pallet block nailing machine | |
The block connecting machine automatically assembles the pallet blocks and the bottom deckboard. |
| Automatic wood pallet nailing machine | |
The host nailing machine finishes the main assembly of the stringers/blocks and top plates using highly accurate, programmable positioning. |
| Wood pallet rotary machine | |
Once nailed on one side, the rotation and turnover mechanisms safely flip the half-finished pallet to allow completing the reverse side. |
| Wood pallet branding machine | |
Equipped with multiple soldering irons, the branding machine automatically imprints standard stamps or logos onto both sides of the pallet. |
| Wood pallet corner cutting machine | |
The four corners of the pallet are cleanly cut and chamfered for safety and compliance with international shipping standards. |
| Wood pallet turning machine | |
The wood pallet turner is an automatic pallet flipping solution designed for high-volume production lines. It handles pallets from 800mm to 1300mm in size, completing each flip cycle in just 4-8 seconds |
| Wood pallet palletizer | |
The finished pallets are automatically collected, flipped, and stacked (up to 4–5 stacks) before being moved down the conveyor line for easy forklift transport. |
| Wood pallet conveyor | |
After the finished pallets are stacked, the conveyor will deliver them for the forklift transport |
Features & Advantages
- High Degree of Automation: Reduces manual labor significantly by completing feeding, nailing, flipping, branding, and stacking in a continuous, automated loop.
- Flexible Programming: The touch screen system supports quick program switching, allowing operators to easily adjust for non-standard pallet customizations.
- Premium Component Stability: Built with internationally recognized, high-grade components (such as BOSTITCH/Max nail guns, Delta control systems, and Airtac electronics) to ensure stable, low-maintenance, 24/7 industrial operation.
- Space & Labor Optimization: Features an obverse/reverse stacking method that maximizes storage density on the stacking platform while slashing operational time.
Key Technical Specifications
- Operating System: Imported PLC Touch Screen control for precise and user-friendly operation.
- Working Mode: Fully automatic feeding, multi-axis linkage nailing, and automatic stacking.
- Nailing Speed: High-efficiency nail guns operating at up to 7 times/second.
- Production Efficiency: 1–2 finished pallets per minute.
- Air Pressure Required: 0.8 MPa.
- Applicable Nail Sizes: Supports a versatile range of nails (65mm, 70mm, 75mm, 80mm, 85mm, 90mm).
Package and shipping:
The wood shaving machine is packed by plywood case or loose, which is suitable for FCL and LCL shipping.
|
|
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
